Portfolio - Wls 700 DeltaCore

Wls 700 DeltaCore


Project Description

WLS 700 – DeltaCore

Physically eliminates pathogens, particles and turbidity from virtually any source of water, including rivers, lakes, streams, ponds, shallow wells and springs.

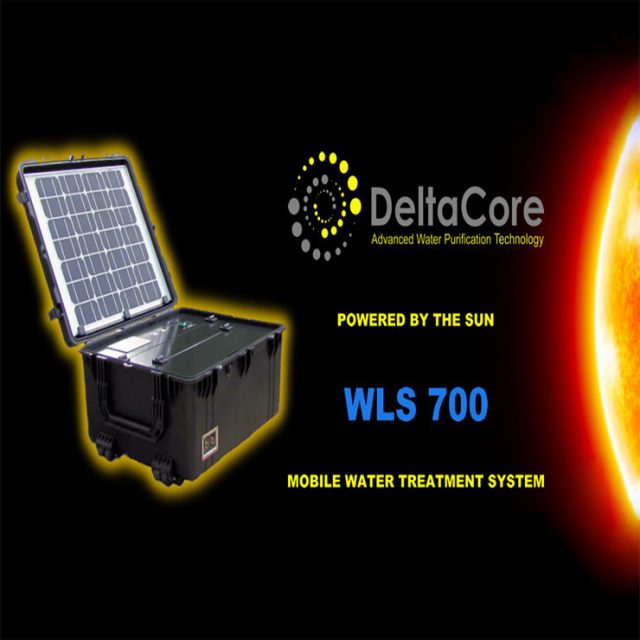

The Water filtration system is placed in PELI case. WLS works in different energy sources: solar energy, 12V DC (car input), 110V AC or 230V AC input.

PROJECT TYPE:

Sales for General Population Use in Emergency Situations

PROJECT VALUE:

$70.000,000

CLIENT:

Ministry of Housing, Ministry of Defense, Ministry of Interior

GENERAL PROGRESS
81%
PHASE 1 - Military Implementaion
85%
PHASE 2 - Civil Protection Implementaion
75%
PHASE 3 - Housing Ministry
85%

Water enters through the automatic priming pump. With 2.8 bar of pressure it penetrates through the pores of the Ultrafilter. The UF physically blocks all particles larger than 0.01 microns, including microorganisms, colloids and pyrogens. This phase acts as a molecular sieve. The water then travels through the oxidation reactor reduction and enters the Multimedia filter that removes chemical contaminants. Water then enters the nanofilter. The active ingredient in the filter is a nano alumina fiber that is the filter. The highly electropositive retains all types of particles, including silica, natural organic matter, metals, bacteria and virus DNA. Finally, purified water passes through the latest generation UV sterilizer.

The system is self-cleaning and designed for the production of drinking water from chemical and microbiologically contaminated water sources.
